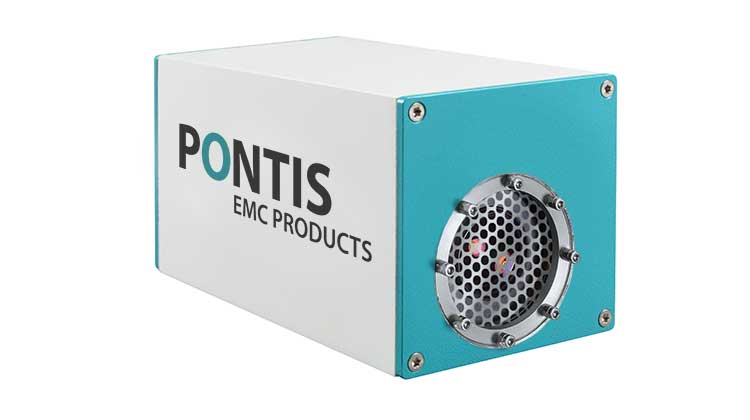

The PONTIS EMC IRThermo6 is designed to observe the temperature of areas and devices in harsh electromagnetic environments (e.g., automotive test facilities) or where low emission is required (e.g., EMC test facilities). The camera covers an area of up to 19*12 m at a distance of 9.5 m. It is specially suited to survey temperature-critical rooms and devices, where overheating can lead to severe damage.
At the HDCon6IP, digital outputs are available with „alarm“ and “fail safe” operation, which are set at overheating or when the camera fails to operate.
A comfortable software allows setting parameters like the region of interest and temperature thresholds.
The camera is ONVIF compatible and can be used with regular surveillance software.
Dedicated controller with comfortable software:
- For surveillance of thermal critical areas
- Define the region of interest
- Detect when the temperature exceeds a predefined threshold
- Alarm output
- Fail-safe output
Features:
- RF-Immunity 200 V/m up to 18 GHz
- Wide temperature range (0 °C to 300 °C @ ± 2 °C) optional 0 °C to 1000 @ ± 2 °C
- Different lenses to cover the requested area
- Motorised lens for manual and autofocus
- IP Camera (ONVIF)
- Connect to HDCon6
- Can be integrated with existing surveillance systems
- Comfortable PC software or dedicated controller HDCon6IP
- Fail-safe and alarm contacts
