RUP Excursion Monitoring System

Ensuring Safety and Efficiency in Offshore Operations

Overview

Welcome to the future of offshore monitoring with the RUP Excursion Monitoring System (RUP ExcMS). Designed to meet the stringent demands of Floating Production Storage and Offloading (FPSO) units and offshore floating wind farms, our system delivers unparalleled accuracy and reliability. Engineered by the WISE Group, the RUP ExcMS leverages state-of-the-art technology to provide real-time position and motion monitoring, ensuring the safety and efficiency of your offshore assets.

Key Features

Advanced Monitoring Capabilities

  • Precise Position Tracking: Utilising high-performance GNSS receivers, gyrocompasses, and 6-axis accelerometers, the RUP ExcMS accurately monitors the position and orientation of floating structures.
  • Real-time Alerts: Immediate notifications for position and motion discrepancies enable swift identification and rectification of mooring line issues, significantly reducing the risk of severe failures.
  • Dual Redundant Systems: High reliability through redundant GNSS receivers ensures continuous monitoring without interruption.

Comprehensive Data Analysis

  • Short-Term and Long-Term Monitoring: The system provides both immediate and historical data, answering the critical question of “Where are we now?” and highlighting long-term trends to pre-emptively address potential issues.
  • Advanced Data Processing: Our system calculates the vessel’s position and excursion status using sophisticated computational algorithms, ensuring high precision and accuracy.

User-Friendly Interface

  • Intuitive Displays: Features such as snail trail displays, position heat maps, and movement data analysis make it easy to visualise and interpret complex data.
  • Customisable Alerts: Configurable inner and outer excursion alarm limits with visual and audible notifications, along with email alerts, keep your team informed at all times.

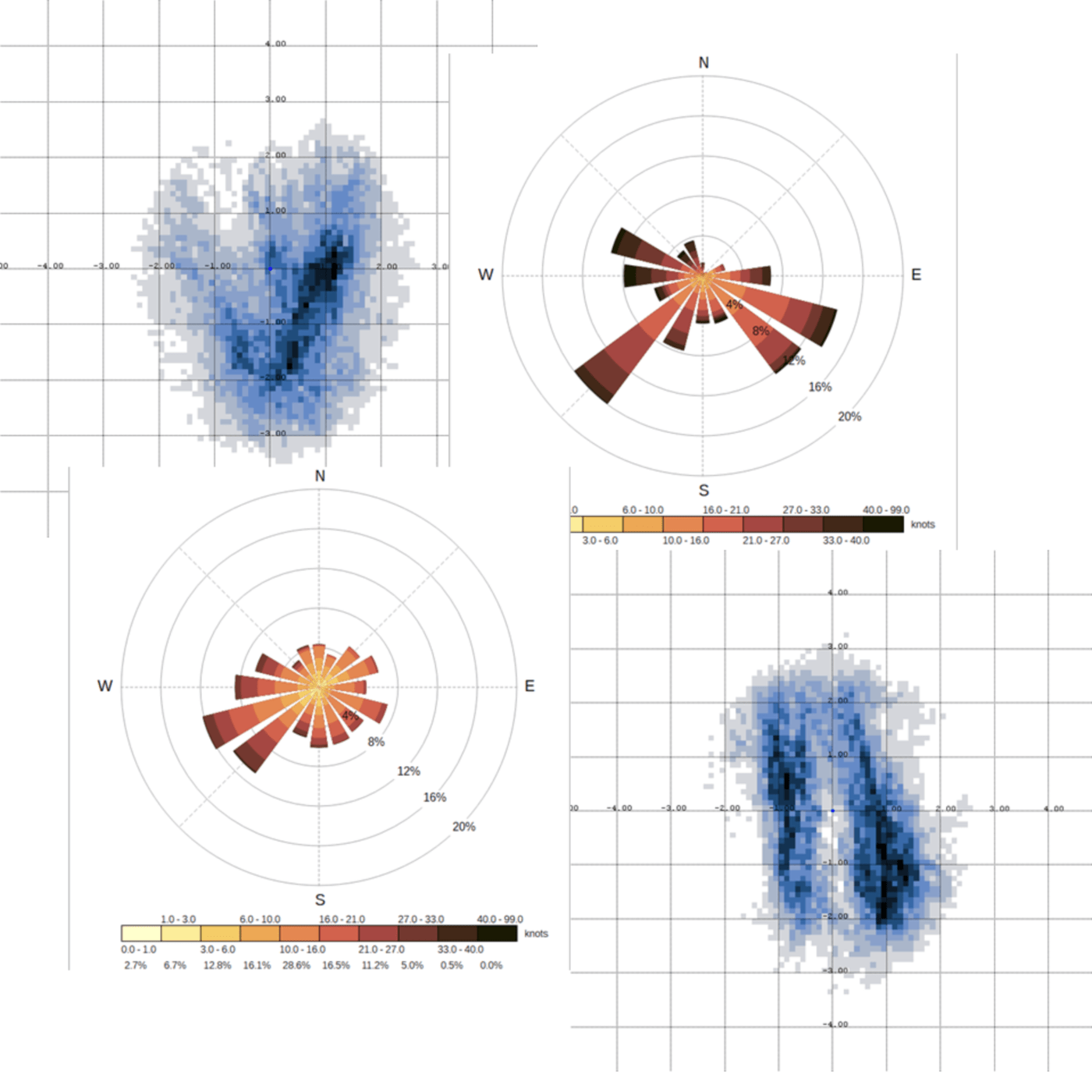

RUP ExcMS Heatmaps

Applications

The RUP ExcMS is versatile and robust, suitable for a wide range of offshore applications, including:

  • FPSO Excursion Monitoring
  • Offshore Floating Wind Farms
  • Mooring Line Tension Monitoring
  • Anchor-Chain Integrity Monitoring
  • Jack-Up Rig Positioning
  • Offshore Aquaculture Infrastructure

Expanding Functionality with the MLT Module

Enhance the capabilities of your RUP Excursion Monitoring System with the Mooring Line Tension (MLT) Module. This advanced software module offers:

  • Continuous Monitoring: Real-time tracking of mooring line tensions to ensure structural integrity through calculations based on the position and sophisticated algorithms.
  • Compliance with DNV Standards: Fully compliant with DNV-ST-0119 and DNVGL-OS-E301, making it an ideal choice for Offshore Floating Wind structures and FPSOs.

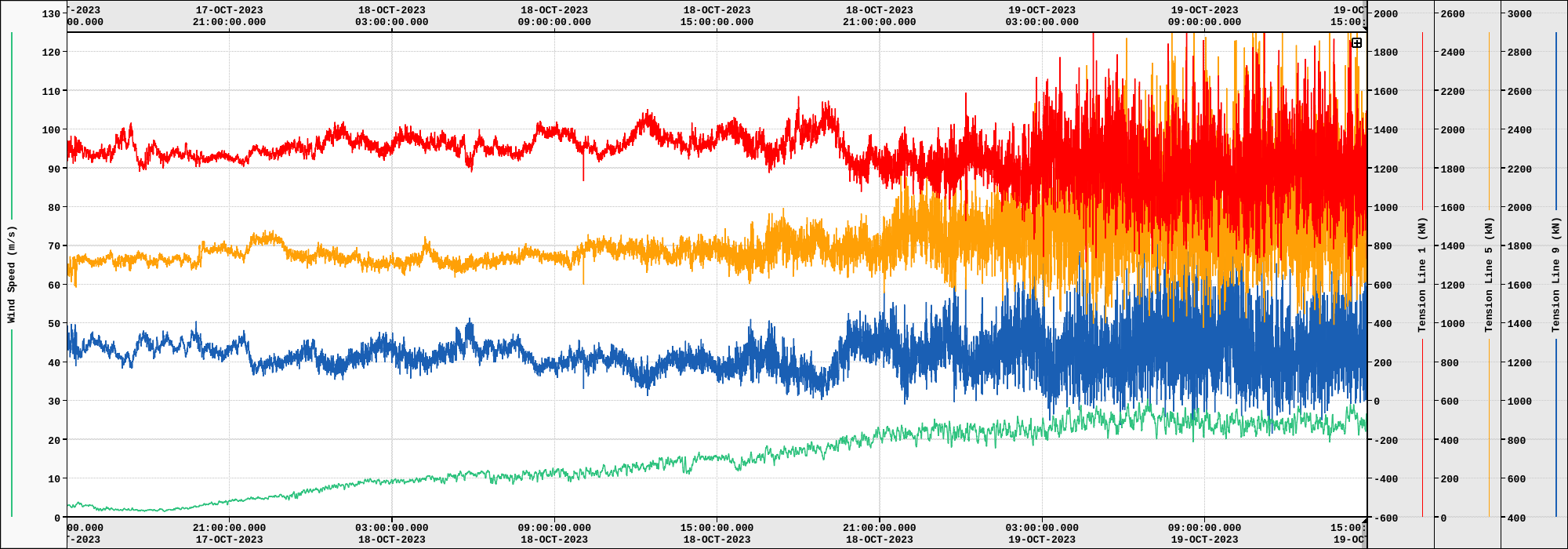

  • High-Frequency Data Logging: Tensions computed at 1Hz and logged in the SCADA system for detailed analysis.
  • Proactive Maintenance: Visual and audible alarms for tension exceedances with email alert capabilities, enabling swift corrective actions.

By integrating the MLT module, operators can achieve a comprehensive monitoring solution that enhances safety, ensures compliance, and optimises maintenance efforts.

Technical Superiority

The RUP ExcMS stands apart due to its superior technical design and integration of high-precision components. Key advantages include:

  • Precision Engineering: Incorporates advanced GNSS receivers and accelerometers for unmatched accuracy.
  • Robust Software: Sophisticated algorithms process and analyse data, providing real-time insights and facilitating strategic decision-making.
  • Durability: Designed to withstand harsh marine environments, ensuring continuous operation and minimal maintenance.

Discover More

To learn more about how the RUP Excursion Monitoring System can enhance the safety and efficiency of your offshore operations, download our detailed brochures. Submit your email address below to receive the comprehensive PDFs, packed with in-depth information and technical specifications.
